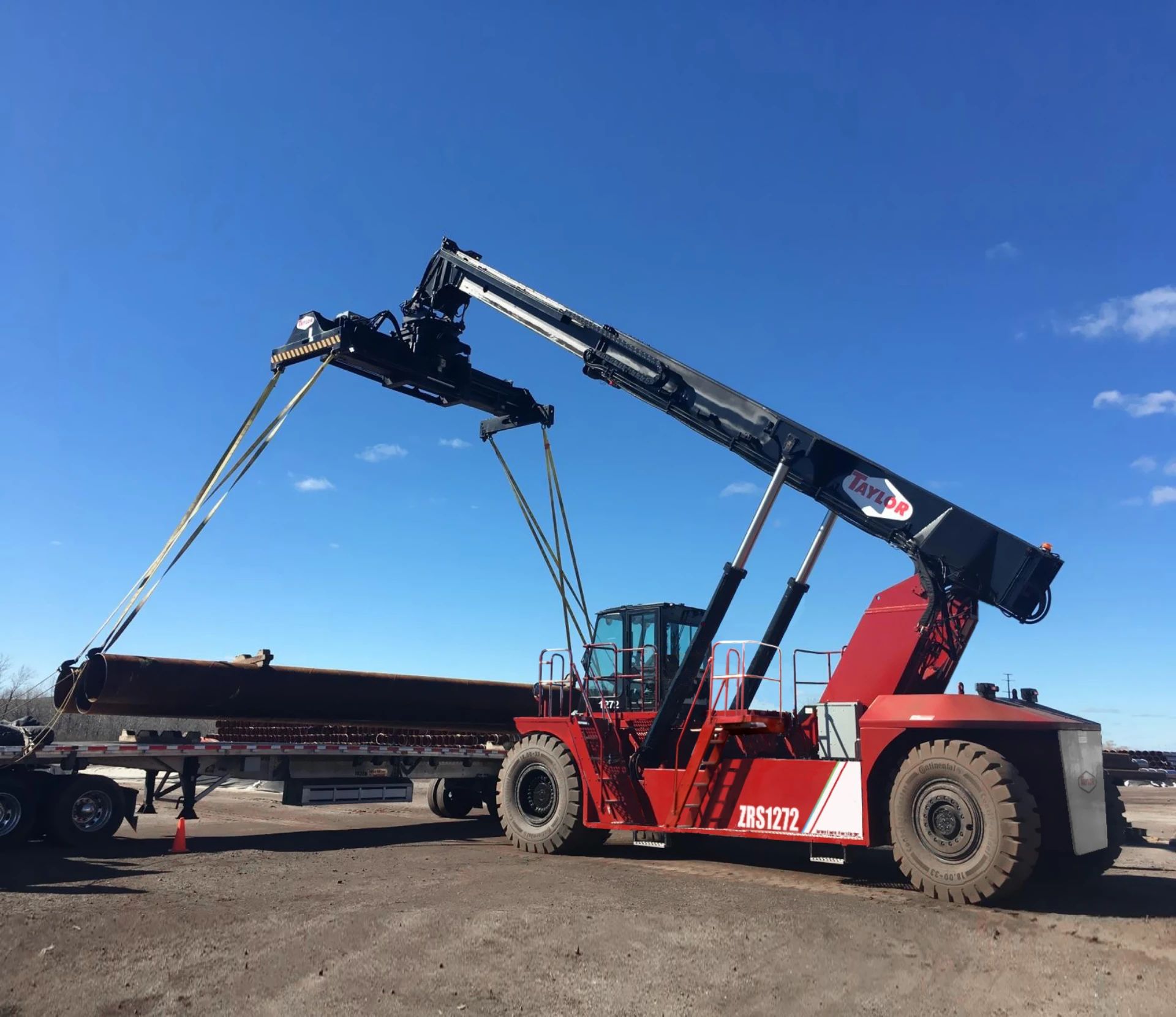

ZRS-1272
Electric Lifts

Standard Features

• Telescopic Boom for stacking 5-High 1st row, 4-High 2nd row and 3-High 3rd row (9' 6" Loaded)
• 120,000-lbs capacity first row up to 2-high stacking
• Boom lift and extension is limited to 1st Row, 2-High 9.5' containers stacking when lifting greater than 99,000-lbs
• 20-40 ISO Container Handling Attachment, with rotation, side shift, expansion/retraction and damping
• 673V All-electric battery power drivetrain. Two-full shift run time (under normal work cycles)
• 4.1 +/- hours full charging time with 200 kW external charging equipment (10%-100%)
• 3.8 +/- hours full charging time with 240 kW external charging equipment (10%-100%)
• E-axle with Energy Recovery Technology through regenerative braking
• Taylor welded steel steer axle with stud protectors (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)

Chassis

• All-welded steel frame with 4 lifting eyes (lifting eyes not designed for level pick)
• Bolted counterweight
• Replaceable bolt-on steps and handrails
• Lockable MSD storage Compartment (Lock-Out Tag-Out)
• Removable deck plates open to expose drive train for ease of maintenance

Cab

• Climate Controlled sliding (hydraulic/electric) all-welded steel center mount cab (includes right-hand and left-hand access doors, with rear exit window and dome light)
• Heating with front and rear defrosting, cab pressurizer and fresh air intake
• Two circulation fans
• Exterior Cab Positioning Switch allows the cab to be moved while the machine is powered down
• Tinted glass with front, rear, and top windshield wipers
• Front and top windshield washer
• Fully adjustable air ride swivel seat with 35° of rotation (15°/20° left-right)
• Multifunction joystick, with integrated directional shift control, mounted on adjustable arm rest
• Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
• Operator Presence System with timed idle and neutral shutdown (5 minute default, password adjustable from 1-120 minutes by end user)
• Taylor Integrated Control System (TICS)
• TaylorTrak Pro - Advanced Fleet Telematics hardware
• 7-in touch screen color display
• Rear visibility aid camera system
• The 2-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
• All wiring is color and number coded.
• Dual USB charging ports
• Hydrostatic, steer-on-demand power steering with tilt steering column

Electrical (Low Voltage)

• 24-volt electrical system with 110 amp alternator
• Dual heavy-duty batteries
• Battery disconnect/lock-out switch
• 2 Sets of Amber/Green/Red Twistlock operation signal lights (mounted in cab and on boom)
• (4) Chassis mounted LED work lights
• (4) Boom mounted LED work lights
• (2) Dedicated Twistlock LED work lights
• (2) LED step lights
• Stop-Tail-Turn Lights
• Circuit breakers with heavy duty connectors
• Breaker reset switches
• Air Horn with 2-gal air tank (126 dBA)
• Keyswitch-actuated amber strobe light
• Forward and reverse-actuated warning alarms

Vehicle Information Package

• Operators Guide
• Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
• Safety Check Manual and Video
