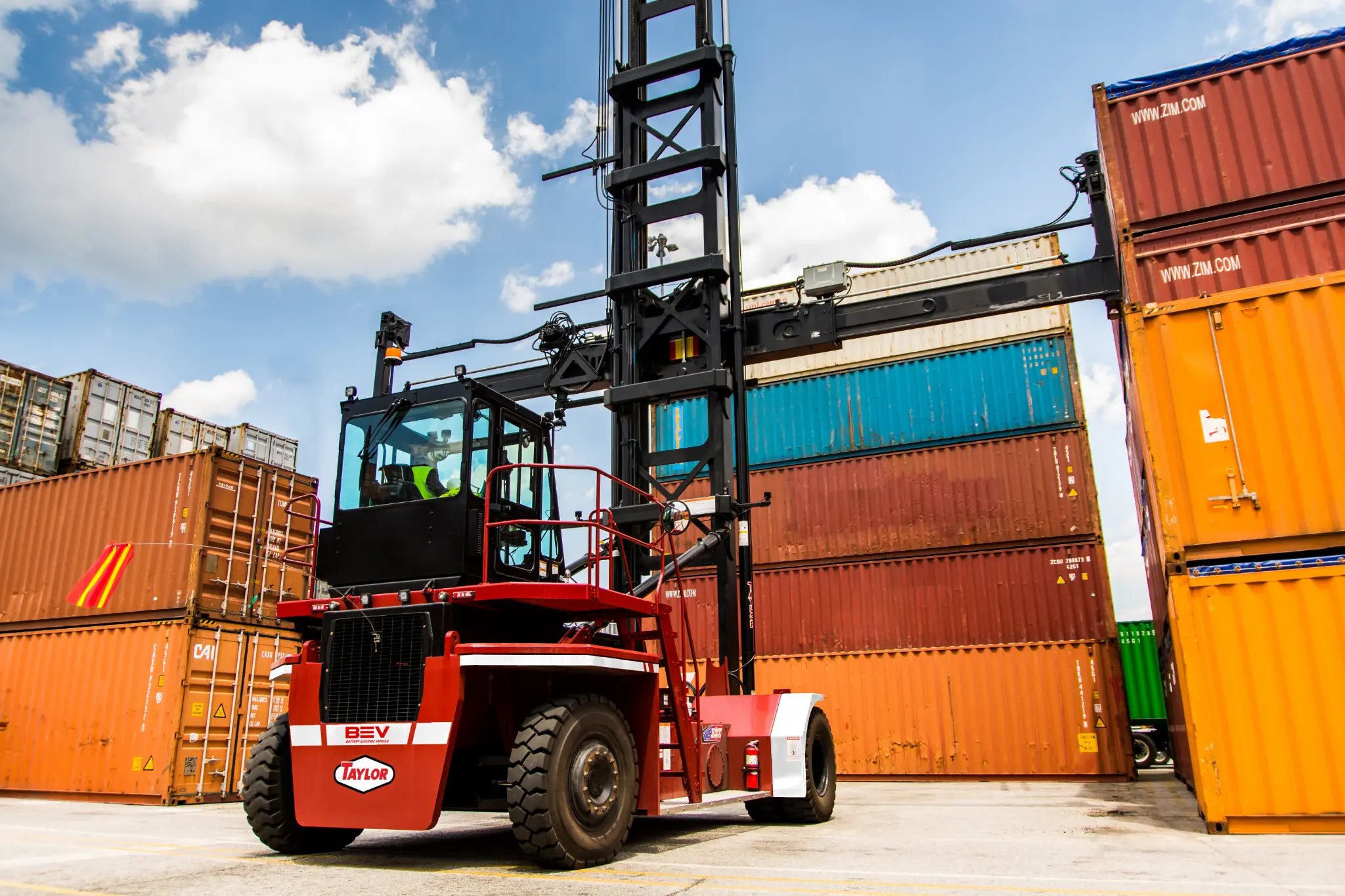

ZEC-206/7
Electric Lifts
HIGH
180.0"
20K lbs.
| Transmission | |
|---|---|
| Mast | 54' 6" UV |
| Spreader | 20-40 ISO |
| Brakes | Regenerative |
| Tires | 14 X 24 - 40PR |
Features
Standard Features
- 54' 6" ULTRA-VIEW Teloscopic Mast for stacking 6-High (9' 6" Empty) & 7-High (8' 6" Empty)
- Side Pick 20-40 ISO Container Handling Attachment, Integrated into the Side Shift Carriage(24" each direction). Features guide arms, mechanical pile slope & twistlock safety interlock system.
- Permanent Magnet Synchronous Motor
- 90+/- minutes charging time with standard battery configuration
- 180+/- minutes charging time with extended range battery configuration
- High voltage electrical system (660 volt)
- Nickel-Manganese-Cobalt Battery Technology
- Kessler E-axle (144 P453)
- Energy Recovery Technology (through regenerative braking)
- Taylor 310 welded steel steer axle with stud protectors (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 14.00 X 24 - 20PR bias pneumatic drive and steer tires
Chassis
Cab
- Enclosed, elevated operator, 2-door all-welded steel center mount cab (includes dome light, wide angle mirrors, door hold back latches with trip handles, handrails, black floor mats and is isolation mounted for noise and vibration reduction)
- Operator cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat with 35 deg. of rotation (15-20 deg. left-right)
- Multifunction joystick mounted on adjustable arm rest
- Roll shift directional control (column mounted)
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5 minute default, password adjustable from 1-120 minutes by end user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with tilt steering column
Electrical (Low Voltage)
- 24-volt electrical system with 95 amp alternator
- Dual heavy-duty batteries
- Battery disconnect/lock-out switch
- 2 Sets of Amber/Green/Red Twistlock operation signal lights (mounted in cab and on container attachment)
- (4) forward facing LED work lights (cab mounted)
- (2) rear facing LED work lights (cab mounted)
- (2) LED work lights (mast mounted)
- (2) LED work lights (twistlock mounted)
- (2) LED step lights
- Circuit breakers with heavy duty connectors (no automotive type fuses)
- Breaker reset switches
- Key-type anti-restart ignition switch
- Electric trumpet horn
- Keyswitch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
Vehicle Information Package
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video
Industries
Lumber
Distribution
Manufacturing
Food
Textiles
Retail
Features
Standard Features
- 54' 6" ULTRA-VIEW Teloscopic Mast for stacking 6-High (9' 6" Empty) & 7-High (8' 6" Empty)
- Side Pick 20-40 ISO Container Handling Attachment, Integrated into the Side Shift Carriage(24" each direction). Features guide arms, mechanical pile slope & twistlock safety interlock system.
- Permanent Magnet Synchronous Motor
- 90+/- minutes charging time with standard battery configuration
- 180+/- minutes charging time with extended range battery configuration
- High voltage electrical system (660 volt)
- Nickel-Manganese-Cobalt Battery Technology
- Kessler E-axle (144 P453)
- Energy Recovery Technology (through regenerative braking)
- Taylor 310 welded steel steer axle with stud protectors (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)
- 14.00 X 24 - 20PR bias pneumatic drive and steer tires
Chassis
Cab
- Enclosed, elevated operator, 2-door all-welded steel center mount cab (includes dome light, wide angle mirrors, door hold back latches with trip handles, handrails, black floor mats and is isolation mounted for noise and vibration reduction)
- Operator cab heater and interior circulation fan
- Tinted glass with front and rear windshield wipers and front windshield washer
- Fully adjustable air ride swivel seat with 35 deg. of rotation (15-20 deg. left-right)
- Multifunction joystick mounted on adjustable arm rest
- Roll shift directional control (column mounted)
- Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
- Operator Presence System with timed idle and neutral shutdown (5 minute default, password adjustable from 1-120 minutes by end user)
- Taylor Integrated Control System (TICS)
- 7-in touch screen color display
- The one-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
- All wiring is color and number coded.
- Dual USB charging ports
- Hydrostatic, steer-on-demand power steering with tilt steering column
Electrical (Low Voltage)
- 24-volt electrical system with 95 amp alternator
- Dual heavy-duty batteries
- Battery disconnect/lock-out switch
- 2 Sets of Amber/Green/Red Twistlock operation signal lights (mounted in cab and on container attachment)
- (4) forward facing LED work lights (cab mounted)
- (2) rear facing LED work lights (cab mounted)
- (2) LED work lights (mast mounted)
- (2) LED work lights (twistlock mounted)
- (2) LED step lights
- Circuit breakers with heavy duty connectors (no automotive type fuses)
- Breaker reset switches
- Key-type anti-restart ignition switch
- Electric trumpet horn
- Keyswitch-actuated amber strobe light
- Forward and reverse-actuated warning alarms
Vehicle Information Package
- Operators Guide
- Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
- Safety Check Manual and Video
