Standard Features: XRS-9972

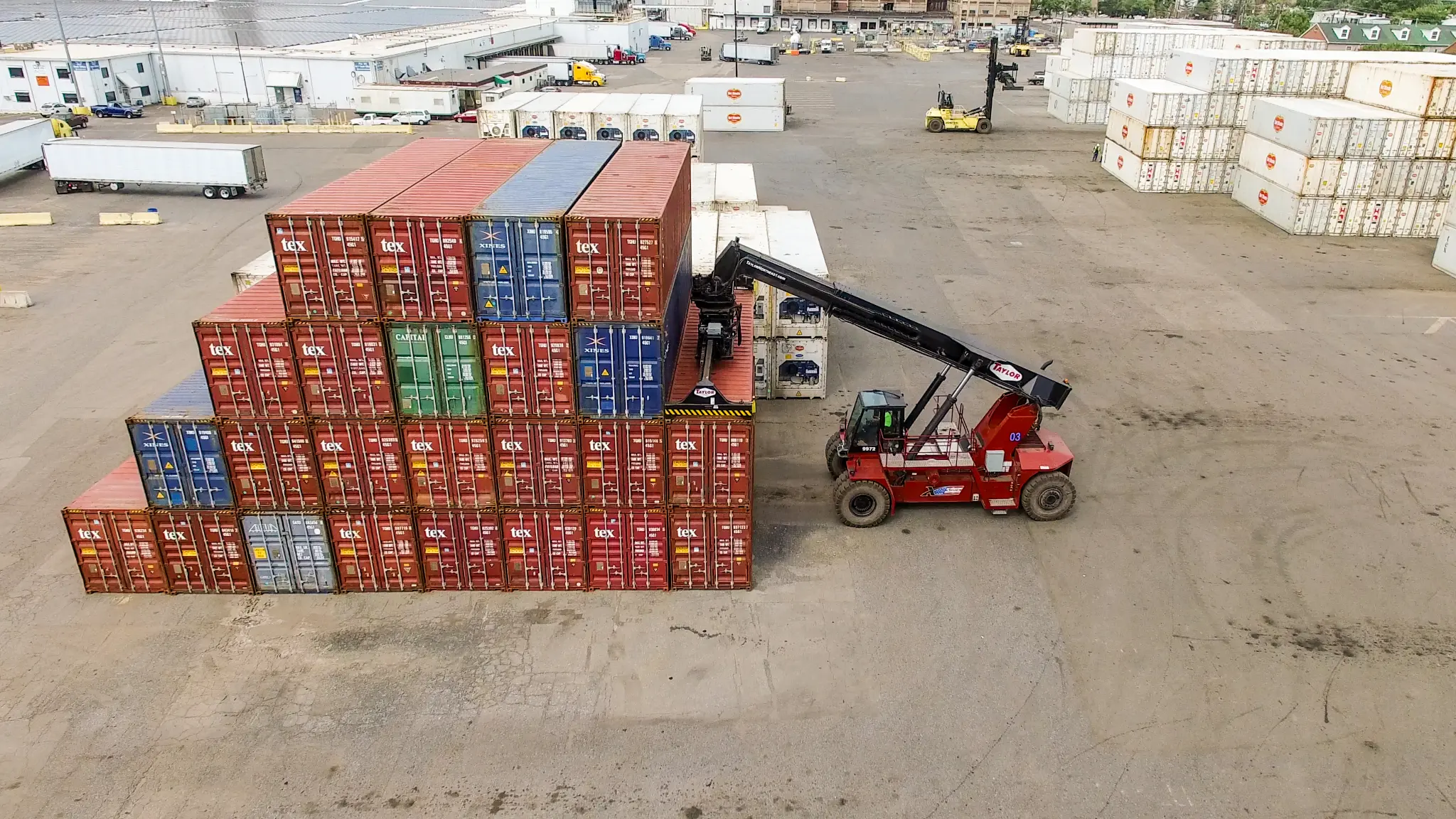

• Telescopic Boom for stacking 5-High 1st row, 4-High 2nd row and 3-High 3rd row (9-ft 6-in Loaded)
• 20-40 ISO Container Handling Attachment, with rotation, side shift, expansion/retraction and damping
• Accumulator in Lift Circuit
• Volvo 12.8L TAD1371VE 388-HP Tier 4-Final Diesel (Turbocharged)
• Fuel/Water separator
• Donaldson dry-type air cleaner w/safety element & restriction indicator (with TaylorMax Precleaner)
• Dana TE-30 5-speed powershift transmission
• Powertrain protection system for engine and transmission
• Kessler D-102W HD planetary drive axle with wet disc brakes
• Taylor 800 welded steel steer axle with stud protectors (single hydraulic cylinder design with heavy-duty links from the cylinder ram directly to tapered roller bearing mounted spindles)

Chassis

• All-welded steel frame with 4 lifting eyes (lifting eyes not designed for level pick)
• Bolted counterweight
• Replaceable bolt-on steps and handrails
• Lockable Fuel Cap
• Removable deck plates open to expose drive train for ease of maintenance

Cab

• Climate Controlled sliding (hydraulic/electric) all-welded steel center mount cab (includes right hand and left hand access doors with rear exit window and dome light)
• 66,000 BTU total heating with front and rear defrosting, cab pressurizer and fresh air intake
• 40,000 BTU air conditioning and two circulation fans
• Exterior Cab Positioning Switch allows the cab to be moved while the machine is powered down
• Tinted glass with front, rear, and top windshield wipers
• Front and Top windshield washer
• Fully adjustable air ride swivel seat with 35° of rotation (15°/20° left-right)
• Multifunction joystick, with integrated directional shift control, mounted on adjustable arm rest
• Operator Restraint System (Orange, anti-cinch seat belt with starting sequence neutral lock)
• Operator Presence System with timed idle and neutral shutdown (5 minute default, password adjustable from 1-120 minutes by end user)
• Taylor Integrated Control System (TICS) …see next page for additional info
• TaylorTrak Pro - Advanced Fleet Telematics hardware
• 7-in touch screen color display
• Rear visibility aid camera system
• The 2-piece flip-down instrument panel is pre-wired to accommodate heavy-duty accessories.
• All wiring is color and number coded.
• Dual USB charging ports
• Hydrostatic, steer-on-demand power steering with tilt steering column

Electrical

• 24-volt electrical system with 110 amp alternator
• Dual heavy-duty batteries
• Dual Battery disconnect/lock-out switch
• 2 Sets of Amber/Green/Red Twistlock operation signal lights (mounted in cab and on boom)
• (4) Chassis mounted LED work lights
• (4) Boom mounted LED work lights
• (2) Dedicated Twistlock LED work lights
• (2) LED step lights
• Stop-Tail-Turn Lights
• Circuit breakers with heavy duty connectors (no automotive type fuses)
• Breaker reset switches
• Keyswitch-actuated push button start
• Air Horn with 2-gal air tank (126 dBA)
• Keyswitch-actuated amber strobe light
• Forward and reverse-actuated warning alarms

Vehicle Information Package

• Operators Guide
• Maintenance and Service documentation including key circuit drawings (Serial Number Specific Parts Book is available upon request)
• Safety Check Manual and Video
